Testing Jaeger With Opentelemetry

This posts is a quick reminder of my testing of opentelemetry SDKs (Python & Golang implementations), working with traces (span, events propagation).

It covers:

Running a Jaeger instance;
Sending traces using a short Python debug script;
Writing logs lines with opentelemetry correlation;
Working with http backend/frontend processes;

Starting Jaeger

Jaeger is a distributed trace collector, ingestor & UI to search & view the traces. It uses Cassandra (or scylladb) or Elasticsearch for trace persistence.

It comes with an all-in-one docker image that will run all the mandatory components (ie: both collector, API, UI & storage) for development & testing purposes.

Running the all-in-one Jaeger docker image

Starting the image is pretty much straightforward (as long as you don’t forget to expose ports), and the following should work out of the box:

podman run -d --name jaeger \
  -e COLLECTOR_ZIPKIN_HOST_PORT=:9411 \
  -p 5775:5775/udp \
  -p 6831:6831/udp \
  -p 6832:6832/udp \
  -p 5778:5778 \
  -p 16686:16686 \
  -p 14268:14268 \
  -p 14250:14250 \
  -p 9411:9411 \
  jaegertracing/all-in-one:1.27

(Note I’m using podman because fedora, but you’re free to use your prefered container runtime tech.).

Once started, Jaeger should be available on localhost, on UI port 16686: http://localhost:16686.

All ports are not required for what you want to do, so you can shrink the list a bit. Most importants ones in my opinion are 6831, 6832 (udp, to accept traces in jaeger.thrift formats), 5778 http port to serve config, 16686 http port to serve UI & finally 14268 to accept jaeger.thrift formats using http.

First Opentelemetry Python SDK usage

I’ll use the Python SDK to send a single trace. Before send it to jaeger, the following script will send it to the console for debug purpose.

The snippet comes from the official documentation page, with some inline comments of mine.

# trace is the base component that will use a tracer to control the execution context of tracing.
# it must be given a tracer API (here TracerProvider), that will make use of a processor & an exporter
from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import (
    BatchSpanProcessor,
    ConsoleSpanExporter,
)

# Create the provider, processor, exporter, and initialize the execution context
provider = TracerProvider()
processor = BatchSpanProcessor(ConsoleSpanExporter())
provider.add_span_processor(processor)
trace.set_tracer_provider(provider)


# Retrieve the instanciated API
tracer = trace.get_tracer(__name__)

# Create a span creating a span creating a span.
with tracer.start_as_current_span("foo"):
    with tracer.start_as_current_span("bar"):
        with tracer.start_as_current_span("baz"):
            print("Hello world from OpenTelemetry Python!")

At this point, the script should run as it. Don’t forget to initialize a virtual environment & install the required deps or, well, it might not work:

$ virtualenv .venv
$ source .venv/bin/activate
$ pip install opentelemetry-api opentelemetry-sdk
$ python test1.py
Hello world from OpenTelemetry Python!
{
    "name": "baz",
    "context": {
        "trace_id": "0x9677d965376d21835a4b03d2dc226920",
        "span_id": "0x1283356771d6ab84",
        "trace_state": "[]"
    },
    "kind": "SpanKind.INTERNAL",
    "parent_id": "0x6f28074b7bf2ac3e",
    "start_time": "2021-11-09T09:50:34.541857Z",
    "end_time": "2021-11-09T09:50:34.541882Z",
    "status": {
        "status_code": "UNSET"
    },
    "attributes": {},
    "events": [],
    "links": [],
    "resource": {
        "telemetry.sdk.language": "python",
        "telemetry.sdk.name": "opentelemetry",
        "telemetry.sdk.version": "1.6.2",
        "service.name": "unknown_service"
    }
}
...

You should see the print message, then on exit, the console dump of the trace spans. As we defined three spans (foo, bar, baz), you’ll have three spans as well. Each spans has several information, as trace_id (should be unique during the whole tracer execution process, multiple span_ids, kind, start/end times, status, etc.) Some of those information are generated during execution, others can be changed (like status, events…).

This said, next step is to send traces to Jaeger. We modify the above script a little bit to add more processing information, like a service name, or modify a bit spans during execution process, by adding some error happening (without any error message yet).

from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor

from opentelemetry.sdk.resources import SERVICE_NAME, Resource
from opentelemetry.exporter.jaeger.thrift import JaegerExporter
from opentelemetry.trace import Status, StatusCode

# Create a provider by providing a service name.
trace.set_tracer_provider(
    TracerProvider(
        resource=Resource.create({SERVICE_NAME: "testaroo-service"})
    )
)

# Create and use a JaegerExporter (no longer use the ConsoleSpanExporter anymore)
exporter = JaegerExporter(
    collector_endpoint="http://localhost:14268/api/traces"
)

trace.get_tracer_provider().add_span_processor(
    BatchSpanProcessor(exporter)
)

# Retrieve the instanciated API
tracer = trace.get_tracer(__name__)

# Create a span creating a span creating a span.
with tracer.start_as_current_span("foo"):
    with tracer.start_as_current_span("bar") as span:
        with tracer.start_as_current_span("error_baz") as span:
            # for some reason, this span had some bad stuff happening
            span.set_status(Status(StatusCode.ERROR))
        with tracer.start_as_current_span("baz"):
            print("Hello world from OpenTelemetry Python!")

Before running, don’t forget to install the new required dependancy opentelemetry-exporter-jaeger.

$ pip install opentelemetry-exporter-jaeger
$ python test.py
Hello world from OpenTelemetry Python!
$

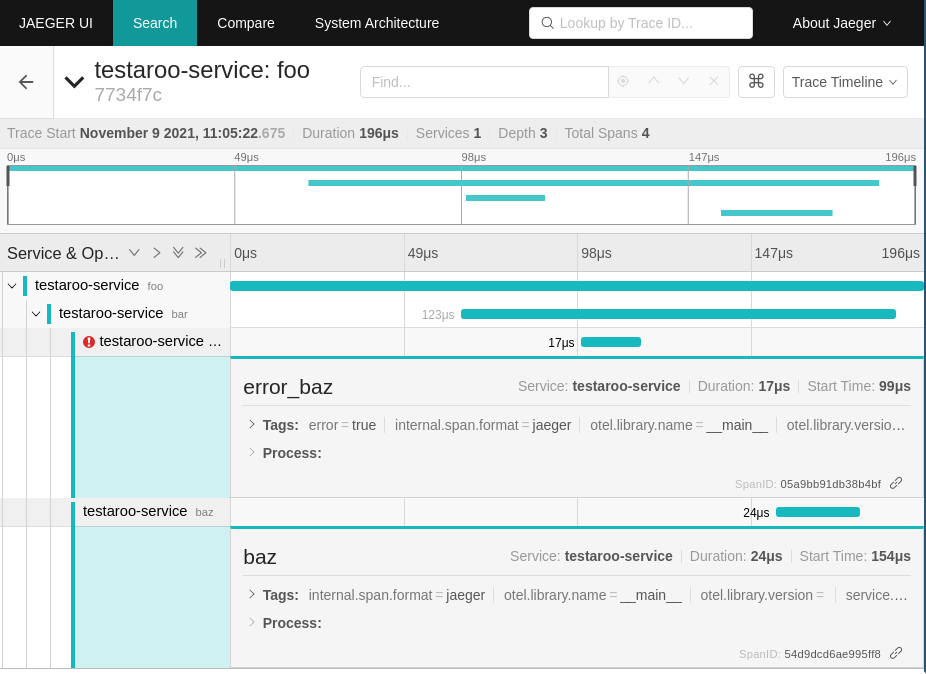

The script is no longer very talkative as the trace is no longer sent to the console. Instead, the trace appeared in Jaeger:

First trace in Jaeger

You can also see the span marked as errored.

In a second part, I’ll add more information in spans, as events/logs, add some logs & make sure logs are correctly correlated with traces, and in a final part, test trace propagation between a python frontend & a golang backend.

In this part, you found out how to start jaeger in development mode, and send your first traces using the Opentelemetry Python SDK.
